[CP2K-user] [CP2K:22265] Re: Axial ligand-related issues in XAFS calculations

[Eason Jane]

Dear  Marcella

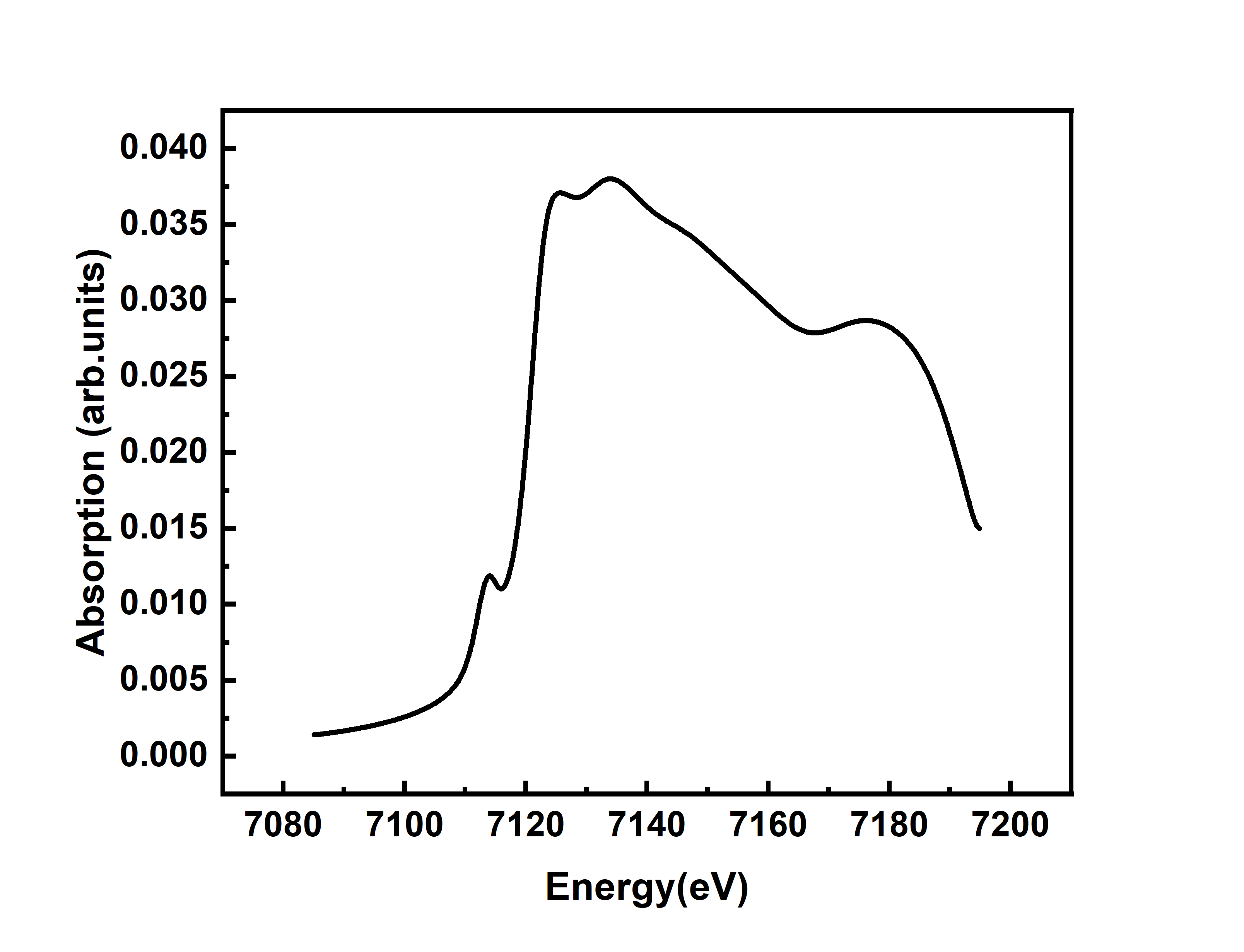

  After performing the calculation using FDMNES, I observed a small peak

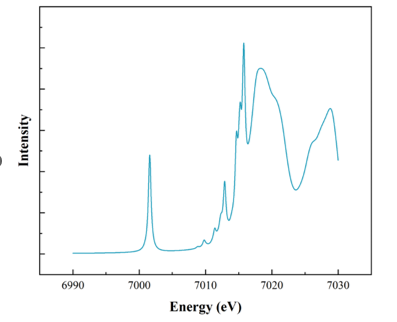

before the main peak (the black line). However, the spectrum obtained from
the CP2K calculation (the blue line) shows a huge peak in the same region.
This makes me suspect that the data for this peak might be incorrect, and I
am also concerned that my parameter settings may be improperly configured.
Therefore, I am seeking some assistance.
  Thank you in advance for your time and help.
Eason
在2026年6月6日星期六 UTC+8 22:29:13<Marcella Iannuzzi> 写道：

Hi Eason

What is exactly the problem.
The output seems OK
Regards
Marcella

On Thursday, June 4, 2026 at 10:34:02 AM UTC+2 easo... at gmail.com wrote:

Dear Community，
  I would like to ask a question regarding a recent calculation. After
adding an O2 molecule as an axial ligand to an Fe-N4 structure, the
calculated XAFS spectrum using CP2K shows an intense peak at ~6999 eV.
Could anyone kindly provide some insights into why this happens? I have
found that this specific feature appears whenever the Fe center is bonded
to O or S atoms.
  （ GLOBAL ： RUN_TYPE ENERGY    theoretical method：PBEh_ADMM with HFX of
45.000 % without RI-HFX    basis set and
pseudopotential：DZVP-MOLOPT-SR-GTH     OT   GAPW     TD-DFT
   Fex ： POTENTIAL ALL  BASIS_SET：def2-TZVP）
  Thank you in advance for your time and help.
Eason

--
