[CP2K-user] [CP2K:21884] Calculating DOS cp2k tutorial - Density of states wrong?

[Andreas Döll]

Hello,

I want to calculate dos and bandstructure for my research, so in
preparation for my system I wanted to follow the cp2k tutorial to calculate
the (total) PDOS and afterwards the band structure of WO3, because I am
unfamiliar with such calculations.

I used the input file for the exercise (linked
here: https://www.cp2k.org/exercises:2017_uzh_cmest:pdos). I obtained the
pdos files for W and O respectively. Using the python script developed by
Tiziano given in the exercise I convoluted BOTH files and summed up for the
total PDOS (python pdos_conv.py WO3-pdos-k1-1.pdos WO3-pdos-k2-1.pdos
--total-sum  --output WO3-smoothed-total.dat). Before continuing to the
band structure of the lattice I noticed that my DOS looks different than
the DOS given in the cited paper
https://pubs.acs.org/doi/full/10.1021/cm3032225 for cubic WO3 (also the
picture for the DOS is in the exercise).

I tried playing around with the basis set or even replicating to 4 4 4
instead of 2 2 2, also changing the sigma value from the script, which was
0.02 by default, but the shape of my DOS is fundamentally different than
the DOS in the paper. I know that in the paper they shift by E_VBM instead
of E_F but I cannot find the desired shape in my data. For visualization
after convolution I just plot energy vs sum all all corresponding states.

I am a bit lost, because I am unfamiliar with this. Attached is the mostly
unchanged input script from the exercise with replicate 4 4 4 and the
resulting pdos zoomed into the Fermi region with the flag -s 0.007 for
smearing, just to show that smoothening is not the issue (I think). I also
provide the original, unsmoothed dos files, as well as the DOS from the
paper.

Is this kind of deviation expected? Using different
basisset/smoothening/maybe input structure? Any comments or hits are
appreciated!

Cheers,
Andreas Doell

--
You received this message because you are subscribed to the Google Groups "cp2k" group.
To unsubscribe from this group and stop receiving emails from it, send an email to cp2k+unsubscribe at googlegroups.com.
To view this discussion visit https://groups.google.com/d/msgid/cp2k/9ba9d554-6004-44a5-8f4f-d7fcd988149cn%40googlegroups.com.
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://lists.cp2k.org/archives/cp2k-user/attachments/20251008/c949c002/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...

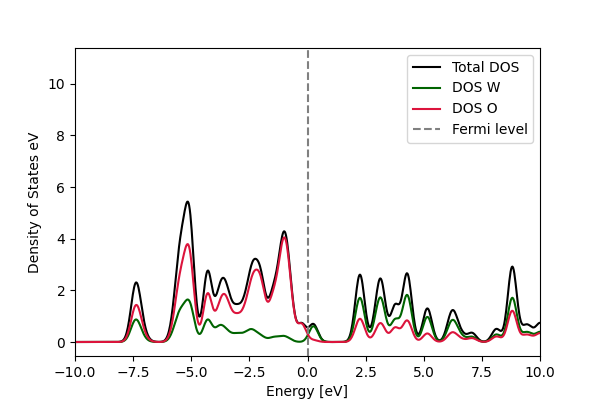

Name: myDOS.png
Type: image/png
Size: 46452 bytes
Desc: not available
URL: <https://lists.cp2k.org/archives/cp2k-user/attachments/20251008/c949c002/attachment-0002.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: WO3-pdos-k2-1.pdos
Type: application/octet-stream
Size: 853093 bytes
Desc: not available
URL: <https://lists.cp2k.org/archives/cp2k-user/attachments/20251008/c949c002/attachment-0002.obj>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pdos_in.inp
Type: chemical/x-gamess-input
Size: 2000 bytes
Desc: not available
URL: <https://lists.cp2k.org/archives/cp2k-user/attachments/20251008/c949c002/attachment-0001.inp>
-------------- next part --------------
A non-text attachment was scrubbed...

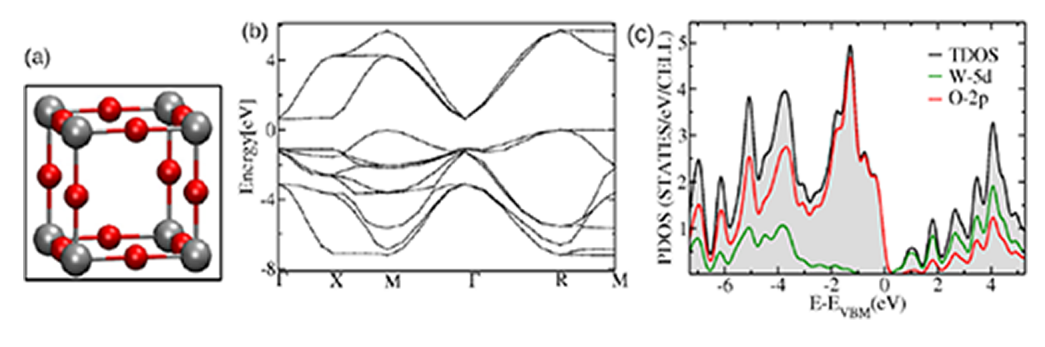

Name: paperDOS.png
