Dear all,

I am testing NPT simulations on the tutorial water system
<https://www.cp2k.org/exercises:2018_ethz_mmm:h2o_md>. I'm including the
following changes to the input file in the tutorial example:

&FORCE_EVAL
    STRESS_TENSOR ANALYTICAL
    ...
&END FORCE_EVAL
...
&MOTION
  &MD
    ENSEMBLE NPT_I
    STEPS 200000
    TIMESTEP 1.0
    TEMPERATURE 300
    COMVEL_TOL 1.0E-10
    &BAROSTAT
      PRESSURE 1.01325 #[bar]
      TIMECON 1000
      VIRIAL XYZ
      &THERMOSTAT
        TYPE SAME_AS_PARTICLE
        &CSVR
          TIMECON 200
        &END CSVR
      &END THERMOSTAT
    &END BAROSTAT
    &THERMOSTAT
      TYPE CSVR
      REGION MASSIVE
      &CSVR
        TIMECON 200
      &END CSVR
    &END THERMOSTAT
    ...
  &END MD
  ...
&END MOTION

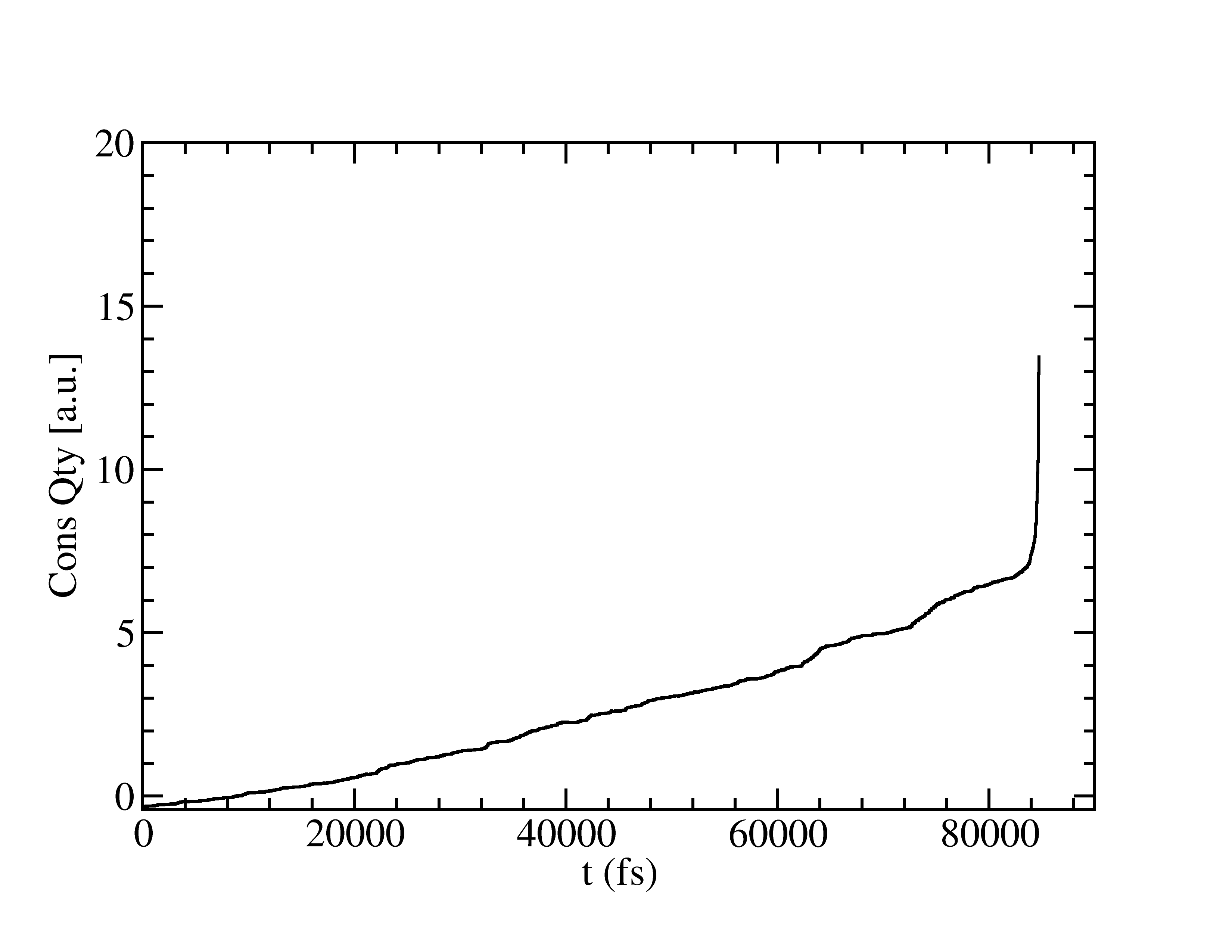

The Cons Qty in the .ener file converged after about 20 ps. However. when I
perform the same simulation from scratch in the NPT-F ensemble (by changing
the NPT-I to NPT-F), the Cons Qty kept increasing and exploded after about
80 ps (please see the plot below, so are the kinetic energy and potential
energy). I will need the NPT-F in future for a tetragonal covalent organic
framework system. Could someone please let me know if I had any wrong or
missing parameters?
And a relevant question, while I set the time constant to be 200 for the
CSVR thermostat of the barostat, the corresponding TIMECON in the restart
file has a value of ~9.6755. Is that relevant to my question? I'm using the
version 2024.2.

And helps and discussions are greatly appreciated.
Zhuoran
